CAD2Quads2026.01 / Windows x64

CAD → QUAD MESH

From CAD model
to mesh.

Open a model, adjust the density and inspect the result in 3D.

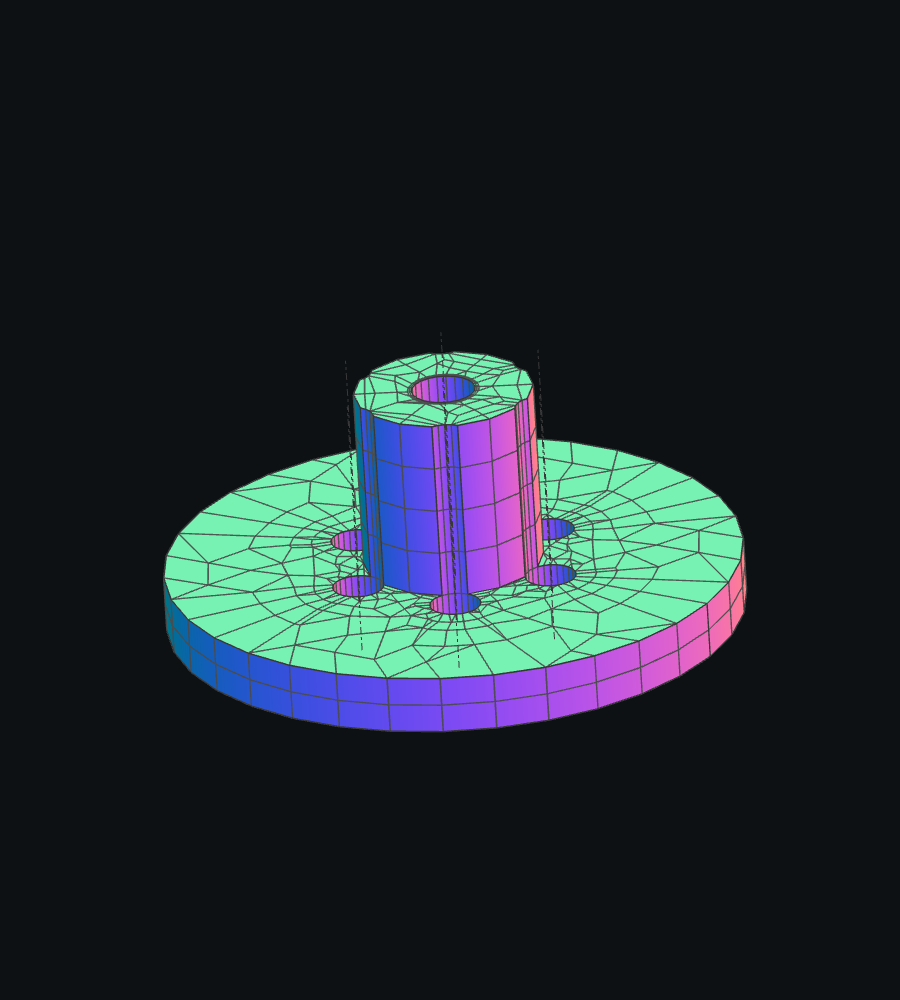

Flange mesh in CAD2Quads
Real model · quads with local triangular transitions
01 / DOWNLOAD

Try CAD2Quads

Getting ready to launch

Registration and downloads will be available here soon. You are viewing a preview of the website.

02 / LICENSE

Try your own models first

Viewing and mesh generation are available without a license. Saving and export are unlocked with a license issued by the administrator.

Place CADQuader.license next to CAD2Quads.exe and restart the application.

EXAMPLES

From surface to mesh

The same part before and after mesh generation. Click an image to view it at full size.

01Bent part with holes

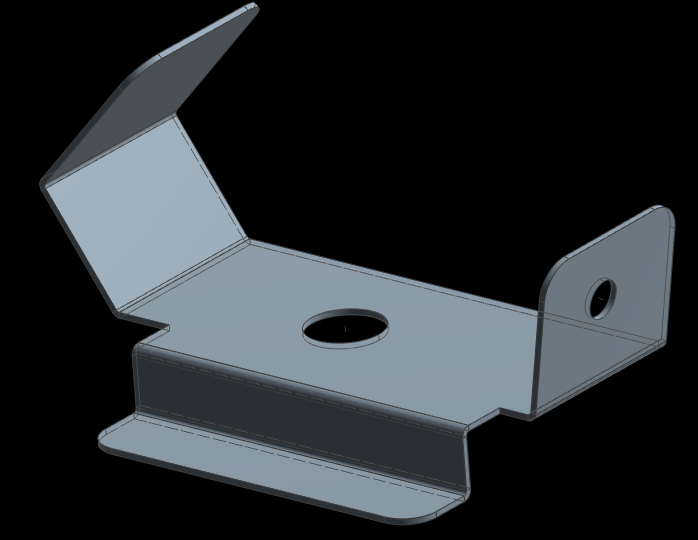

Bent part with holes — CAD model
CAD model

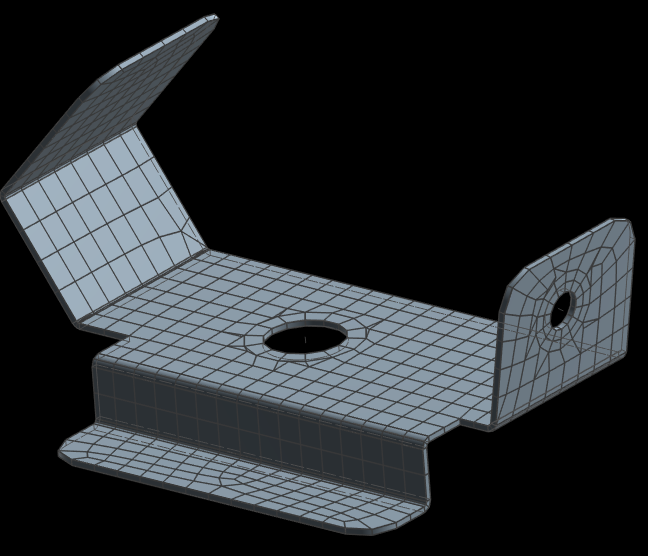

Bent part with holes — Mesh
Mesh

02Cylindrical part with a cutout

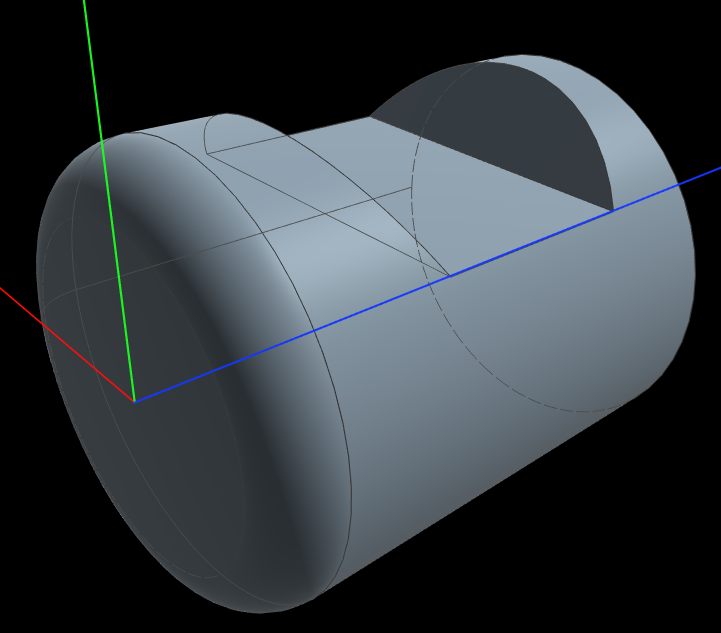

Cylindrical part with a cutout — CAD model
CAD model

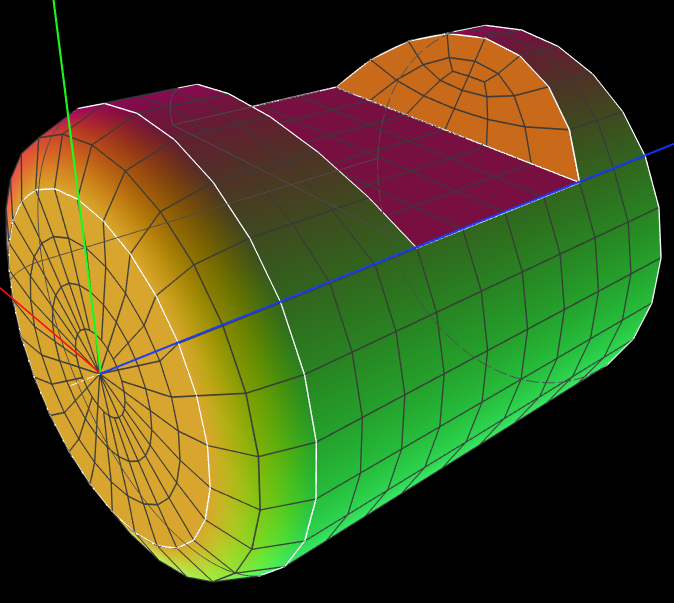

Cylindrical part with a cutout — Mesh
Mesh

03Intersecting cylindrical surfaces

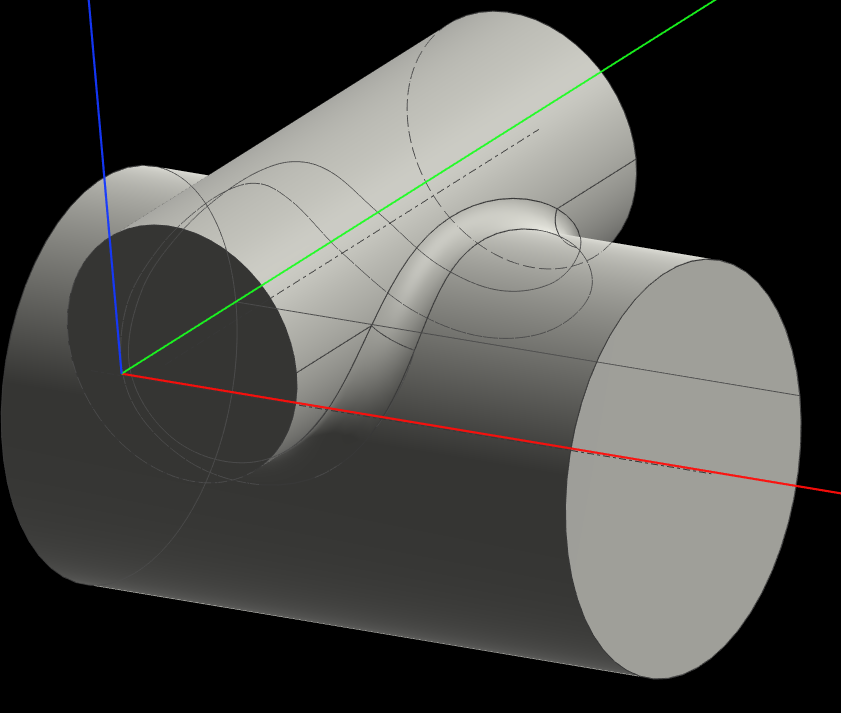

Intersecting cylindrical surfaces — CAD model
CAD model

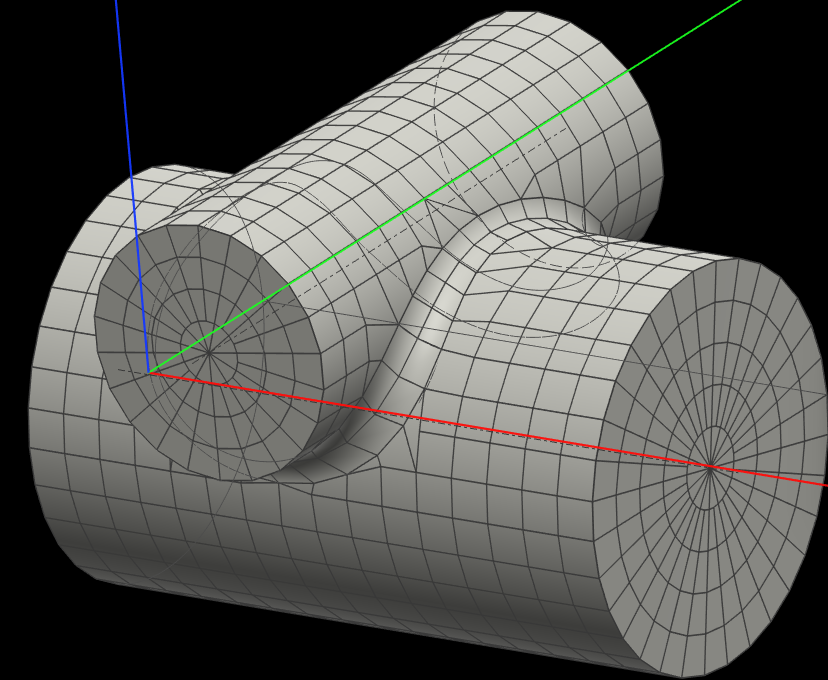

Intersecting cylindrical surfaces — Mesh
Mesh

04Fillets and through holes

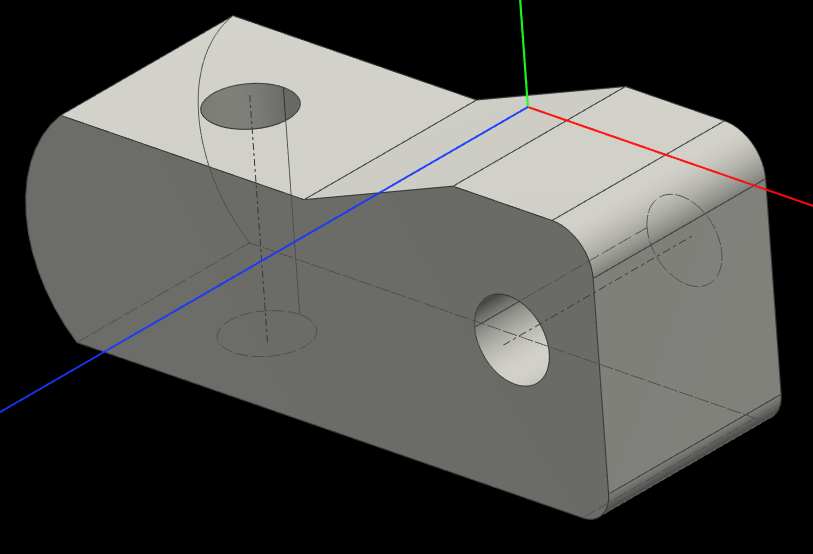

Fillets and through holes — CAD model
CAD model

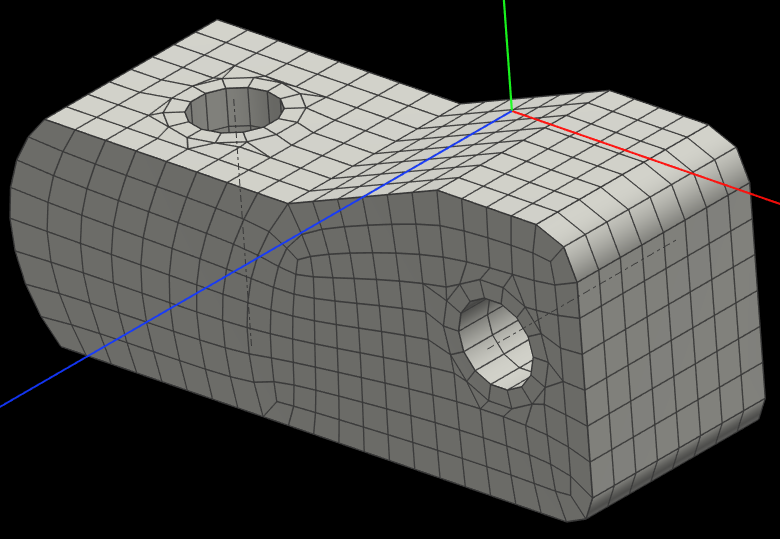

Fillets and through holes — Mesh
Mesh
